Leapers UTG QD Airgun 9-11mm base 4 Screw 30mm tube HIGH Scope Rings 60mm+ lens RQ2D3224

Leapers UTG Heavy Duty – Heavy Action QD (Quick Detach) LE Grade Precision Machined 4 screw Scope Mount Rings

• For 30mm Tube scopes
• 9-11.5mm (3/8″) base rails
• High profile – 44-60mm objective lens scopes – see clearaance guide below to make sure
• Pair – 2 mounts supplied

Leapers UTG Quick Detach Rings (QD) are among the most durable and versatile quick detachable mounting system available.

Lighweight with slot cut in top ring to reduce weight.

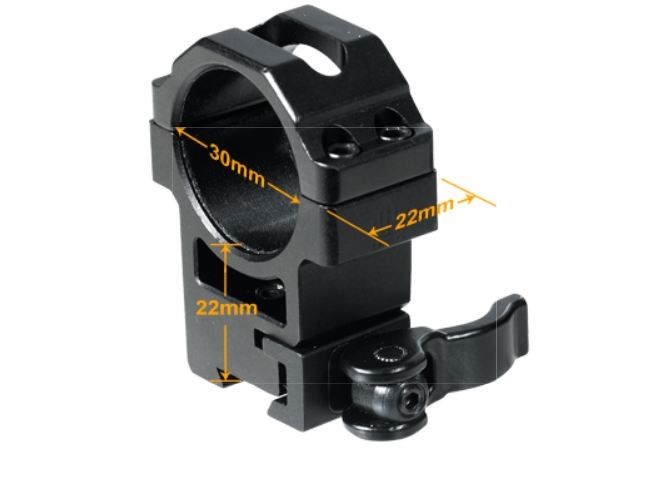

Base to ring bottom (saddle) = 22mm

if unsure how to determine what you have see http://www.tacticalscope.co.uk/blog/?p=50

Calculating scope to rifle body clearance

The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.

For scopes with a 30mm diameter body tube this means deducting 15mm.

Note we say OUTSIDE diameter – this means NOT the lens diameter, you need to measure the whole outer casing diameter.

The result gives you the minimum «saddle» dimension required – the measure from base of mount to bottom of the ring – the 22mm dimension that is shown above.

The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body.

Example –

1. A scope has an outer case measurement of 62mm
2. 62 divided by 2 = 31.
3. 30mm scope so deduct 15mm from 31mm = 16mm
4. So the mount must have a saddle measure (base of mount to bottom of the ring) greater than 16mm or else it will ground out on the rifle body.
5. As these mounts have a 22mm height they will have 6mm spare and be ideal.

Calculating your rifle scopes clearance in this way does assume your dovetail or base is not raised above or below your rifles barrel. Note some rifles with high or adjustable cheek pieces may require higher scope mounts or risers so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.

Wear Resistance
Mil spec Type III class 2 hardcoat anodizing for scratch and wear resistance

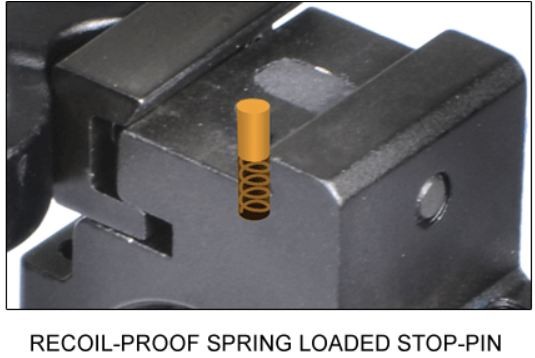

Anti Recoil Stop Pin
Innovative robust recoil-proof spring tensioned stop-pin for rails with or without recess holes

Quick Detach and Lock

• Robust and user friendly ergonomic Quick Detach/Lock lever.
• High quality synthetic protective tape applied on rings internal surface to protect scope body.
• Tight tolerance control and repeatable positive locking for optimal re-zero performance.

Innovative robust recoil-proof spring tensioned stop-pin for rails with or without recess holes

Spring tension controlled locking plate with steel insert guarantees most secure installation making them easy to use on even low quality or worn rails.
